IR-MB04 Assemble

Using Vertical Mounting Metal Barcket(IR-MB04) (IR-MB04 which is dedicated for 26mm, 27mm stroke version Vertical mounting)

1. Separate the metal brackets from the top and bottom as shown in the figure below. As shown in the figure below, pay attention to the direction of the actuator for proper mounting.

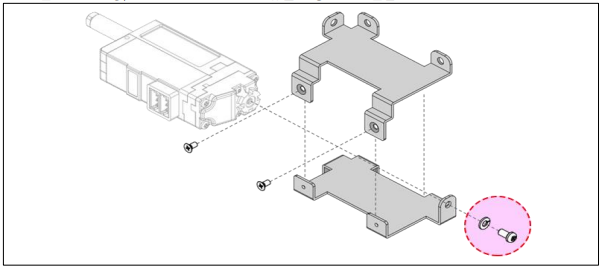

2. Make sure to put spring washer before M2.5 L5 screw is applied. (See Red circle on image below.) Then, tighten the metal brackets with M2 L4 screw.
3. Mounting assembled metal brackets
   1. Bottom Side
   2. Front Side

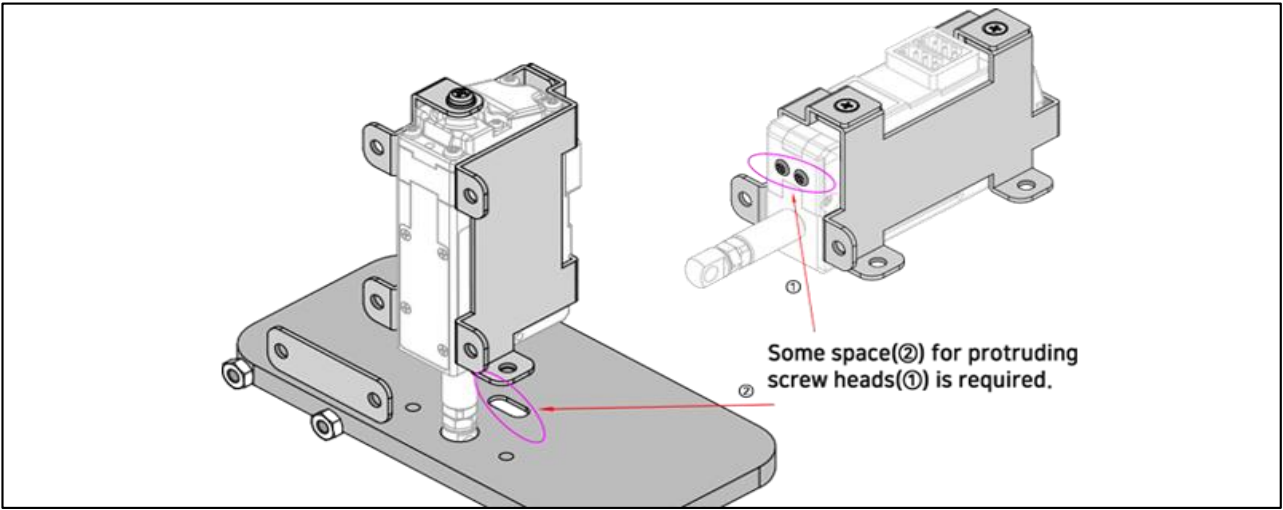

4. CAUTIONS, some space(②) for protruding screw heads(①) is required.
