IR-MB05 Assemble

Using Metal Barcket(IR-MB05)

• The IR-MB05 metal bracket dedicated to the 17Lf 27mm stroke series allows the servo actuator to be mounted horizontally without any directional restrictions.
• For Lateral Mounting
• Not applicable to models other than 17Lf 27mm stroke series

Choose preferred mounting direction, then follow the instruction

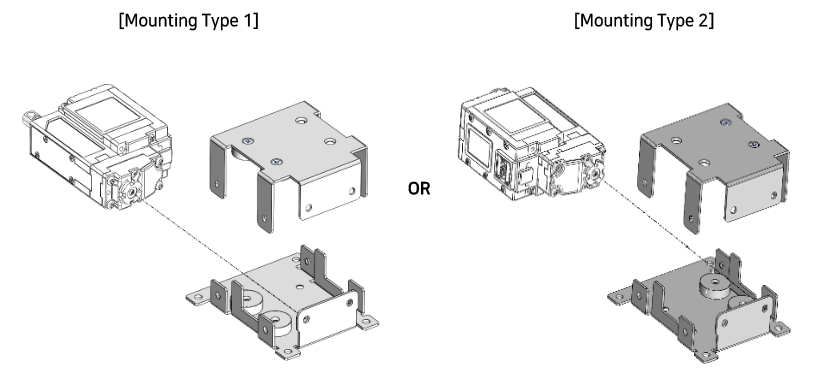

• Step. 1

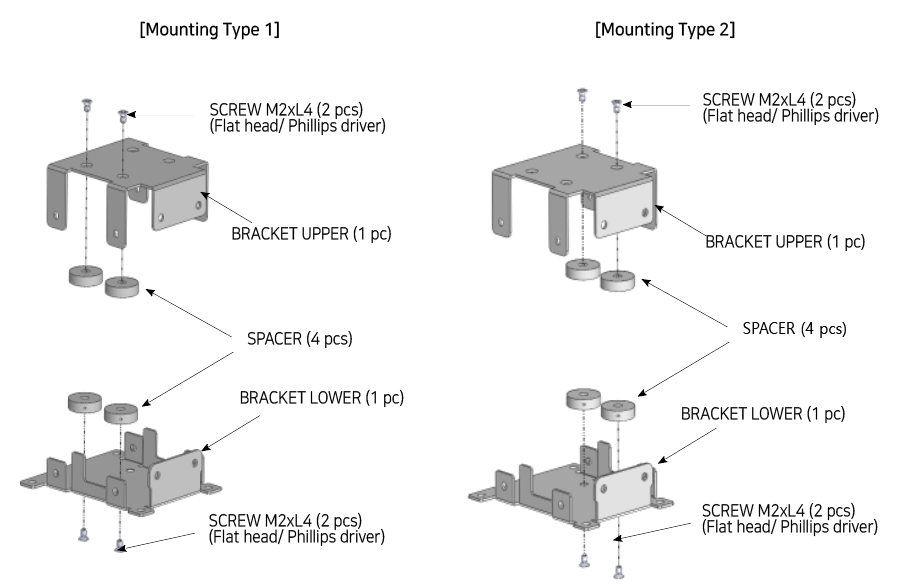

• Step. 2

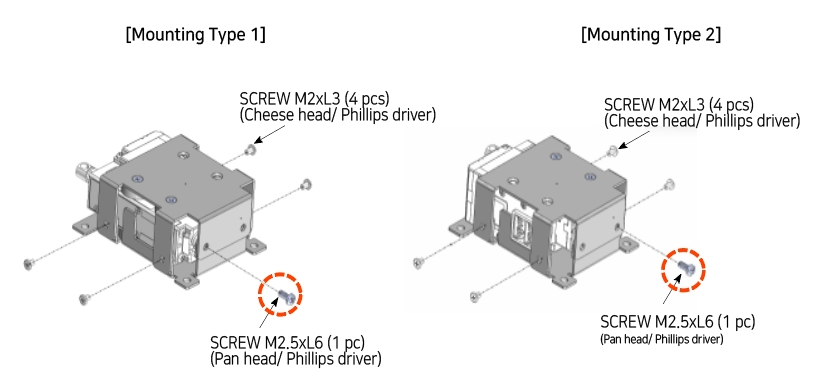

• Step. 3

Caution

When fastening the Screw M2.6xL6 indicated by the in the image above, be sure to use the screw screw included in the bracket. (Pay attention to the length of screw)  Otherwise, it may result in damage to the product.
