IR-MB02 Assemble

Using Lateral Mounting Metal Barcket(IR-MB02) (IR-MB02 which is dedicated for 26mm, 27mm stroke version Lateral mounting)

This is the most common method to mount mightyZAP. Fix mightyZAP using dedicated metal bracket IR-MB02.

1. Separate the metal brackets from the top and bottom as shown in the figure below. mightyZAP can be mounted by IR-MB02 without directivity.
2. Make sure to put spring washer before M2.5 L5 screw is applied. (See Red circle on image ② below.) Tighten the metal bracket with M2 L2 screw.
3. mightyZAP can be mounted by IR-MB02 without directivity. See Installation method ⓐ and ⓑ below.

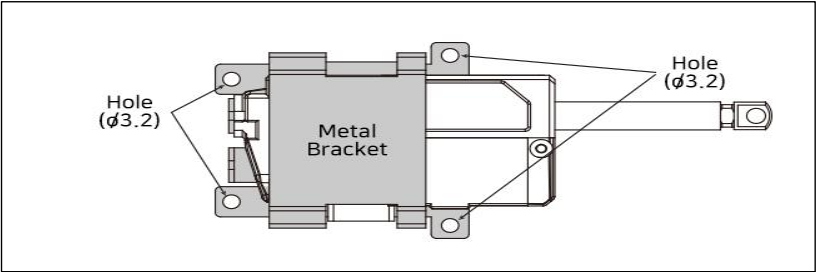

4. Mounting assembled metal brackets Apply M3 screws to 4 x M3 mounting holes.
