12Lf-xx-27 Drawings

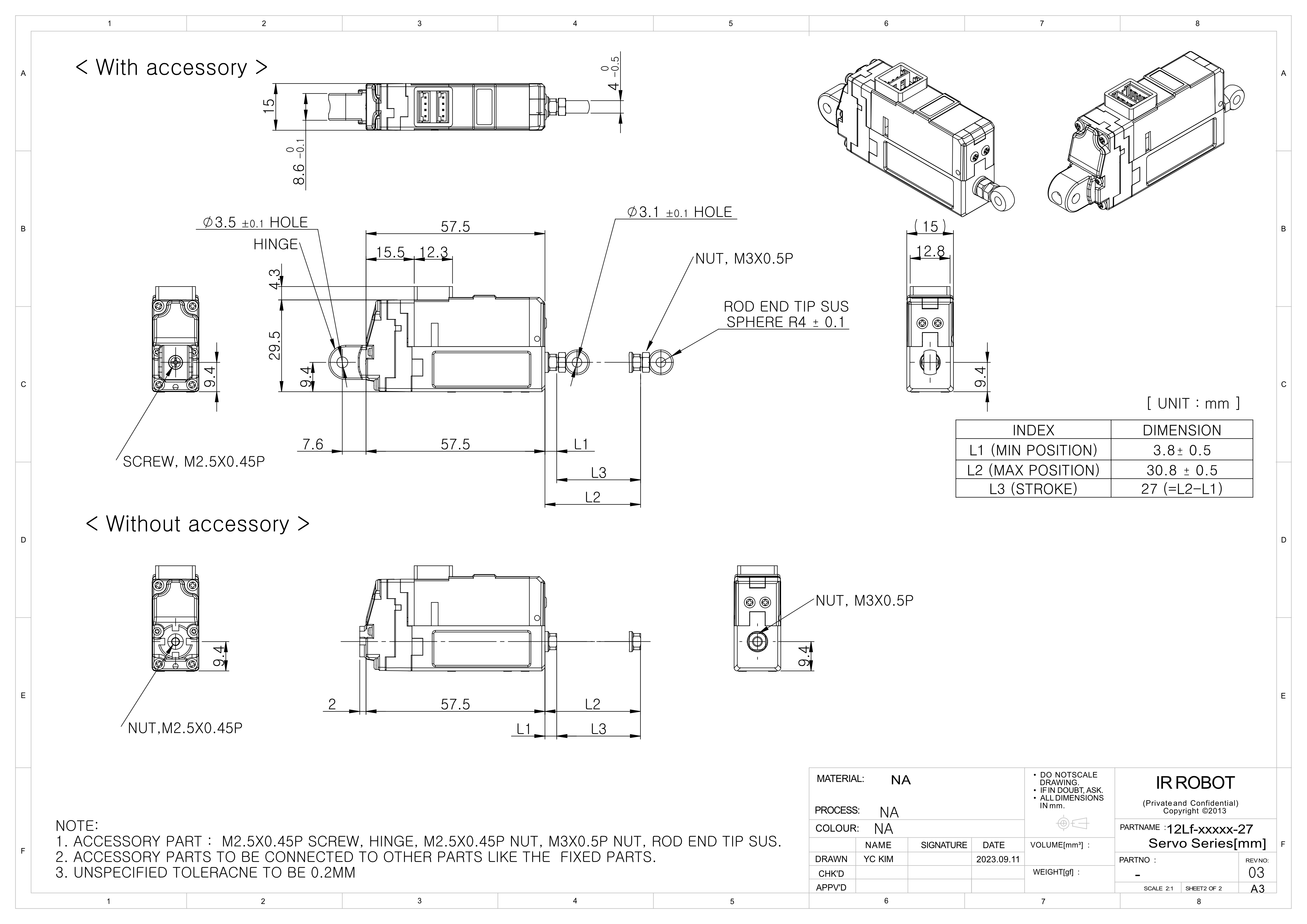

12Lf-xx-27 Unit : mm

12Lf-xxF-27 Drawing
Download PDF STEP dxf

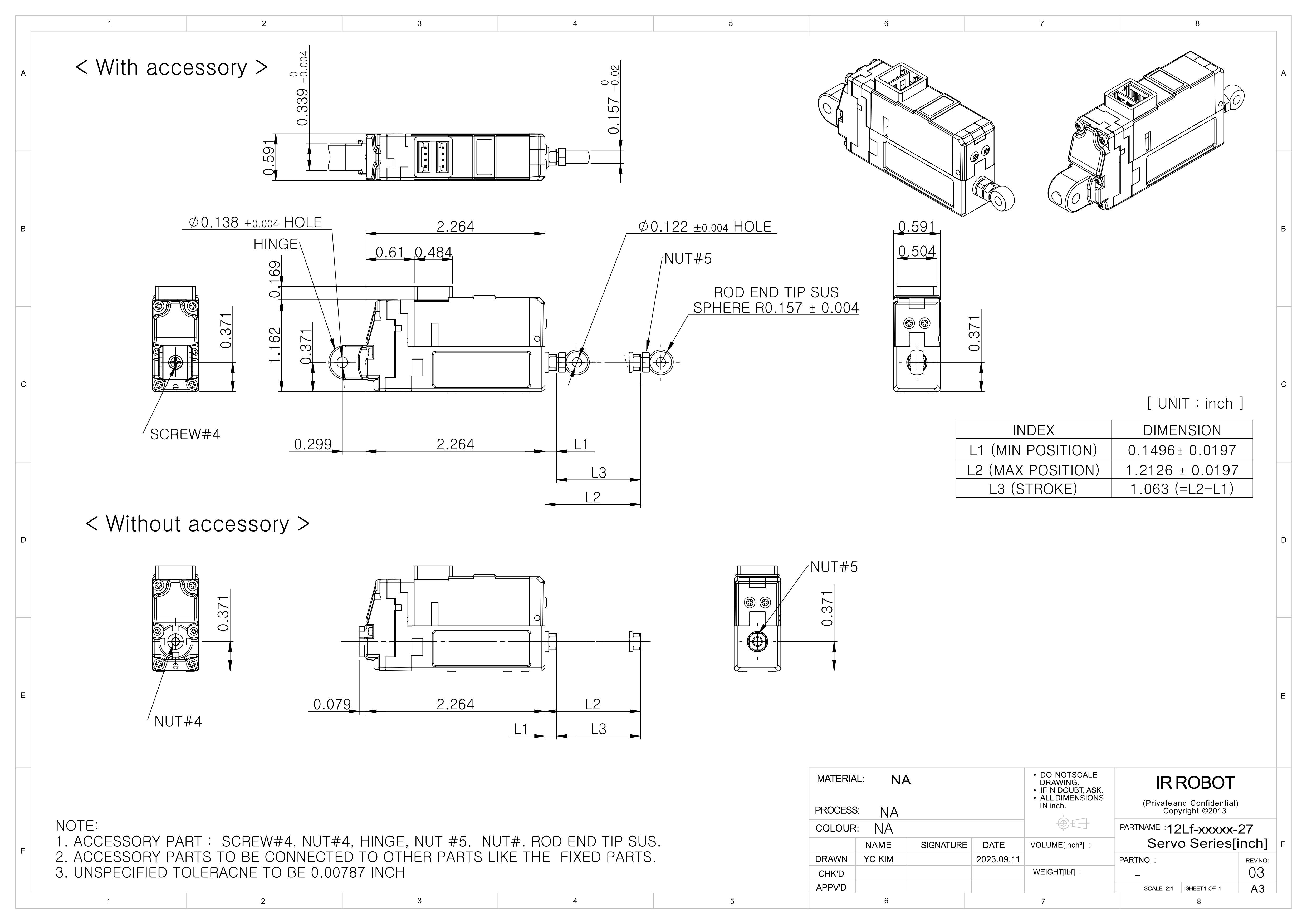

12Lf-xx-27 Unit : Inch

12Lf-xxF-27 Drawing
Download PDF STEP dxf
