L12-xx-3 Drawings

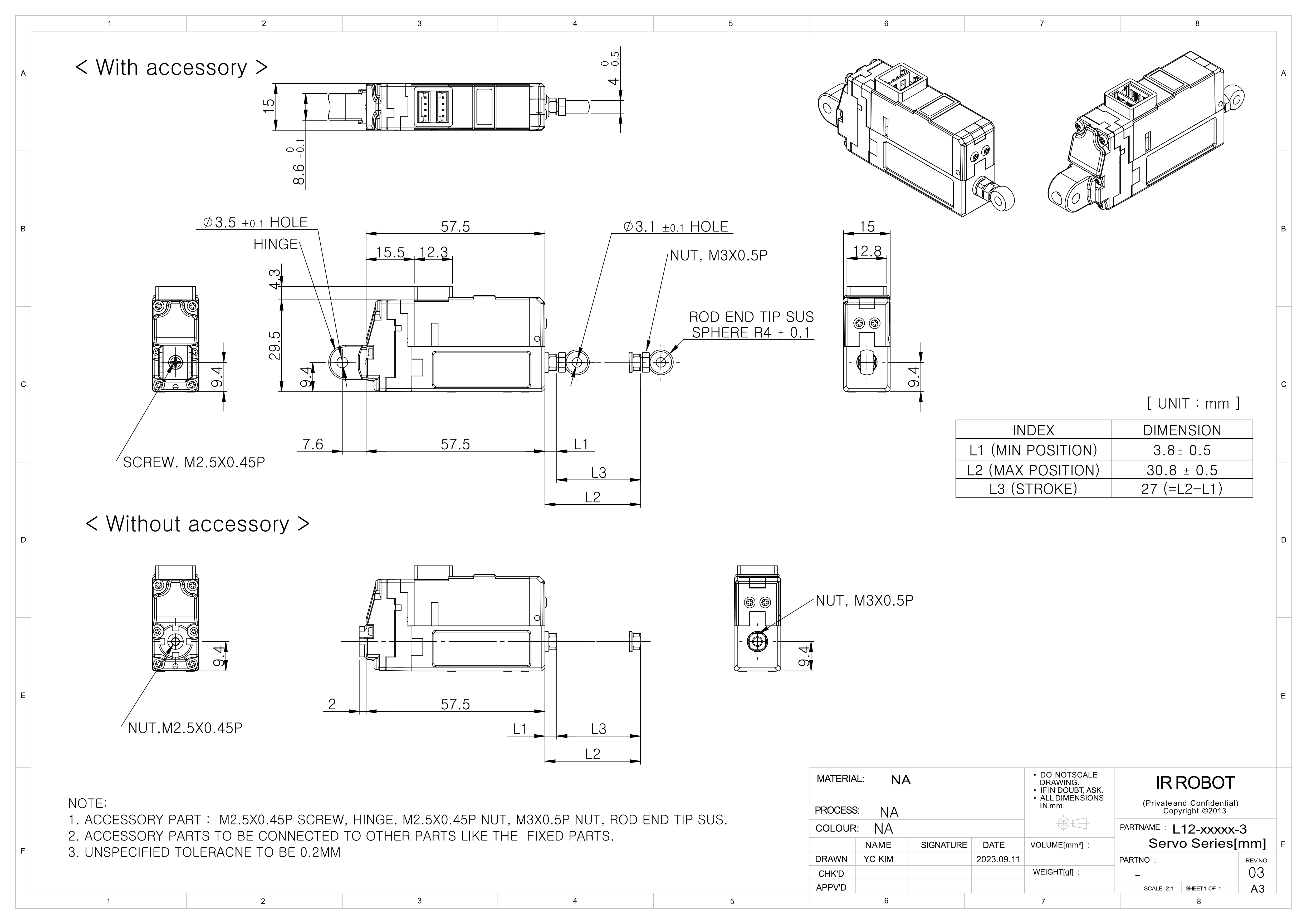

L12-xx-3 Unit : mm

L12-xx-3 Drawing
Download PDF STEP DXF

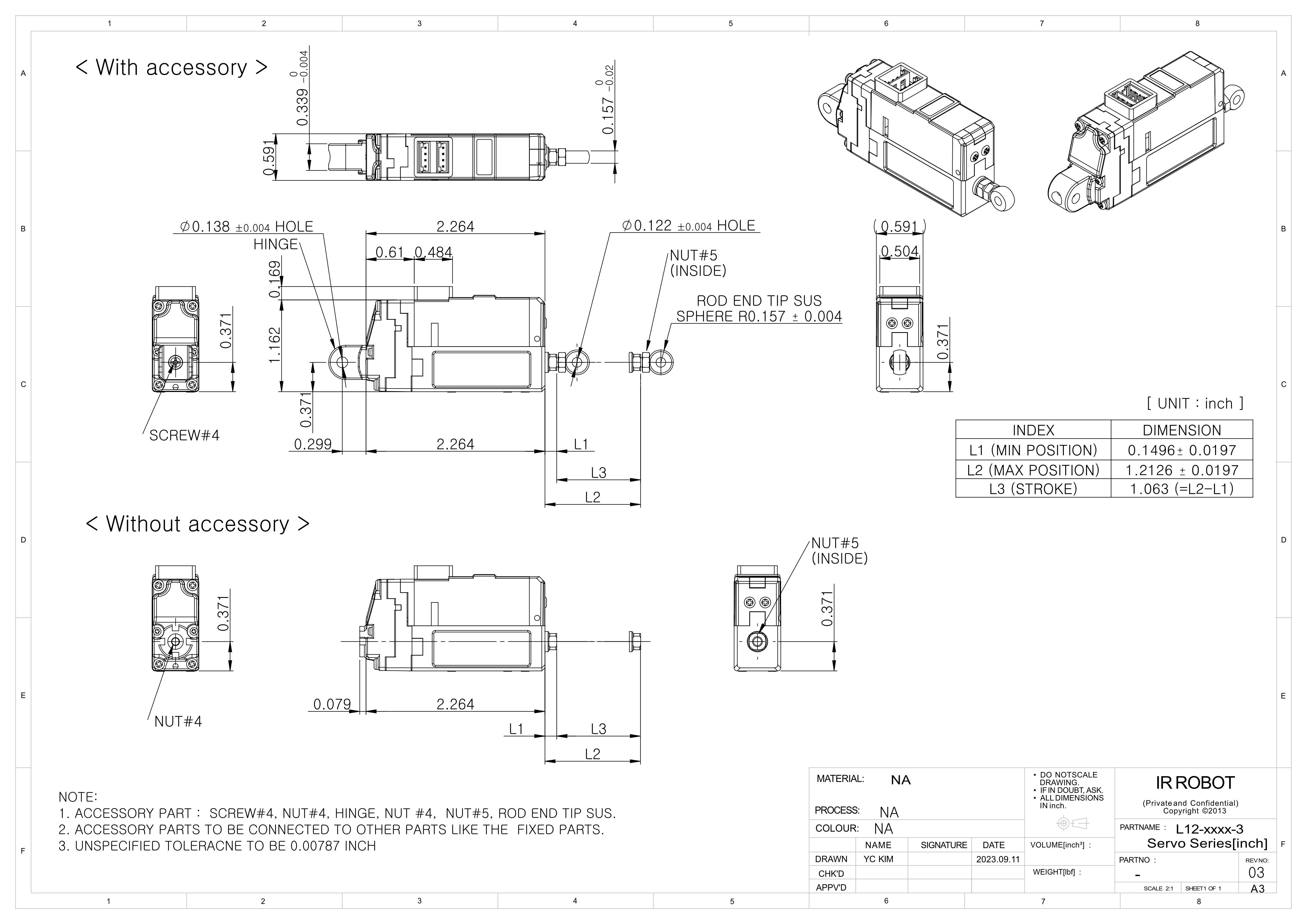

L12-xx-3 Unit : Inch

L12-xx-3 Drawing
Download PDF STEP DXF
