d7d12-xx-3 Drawings

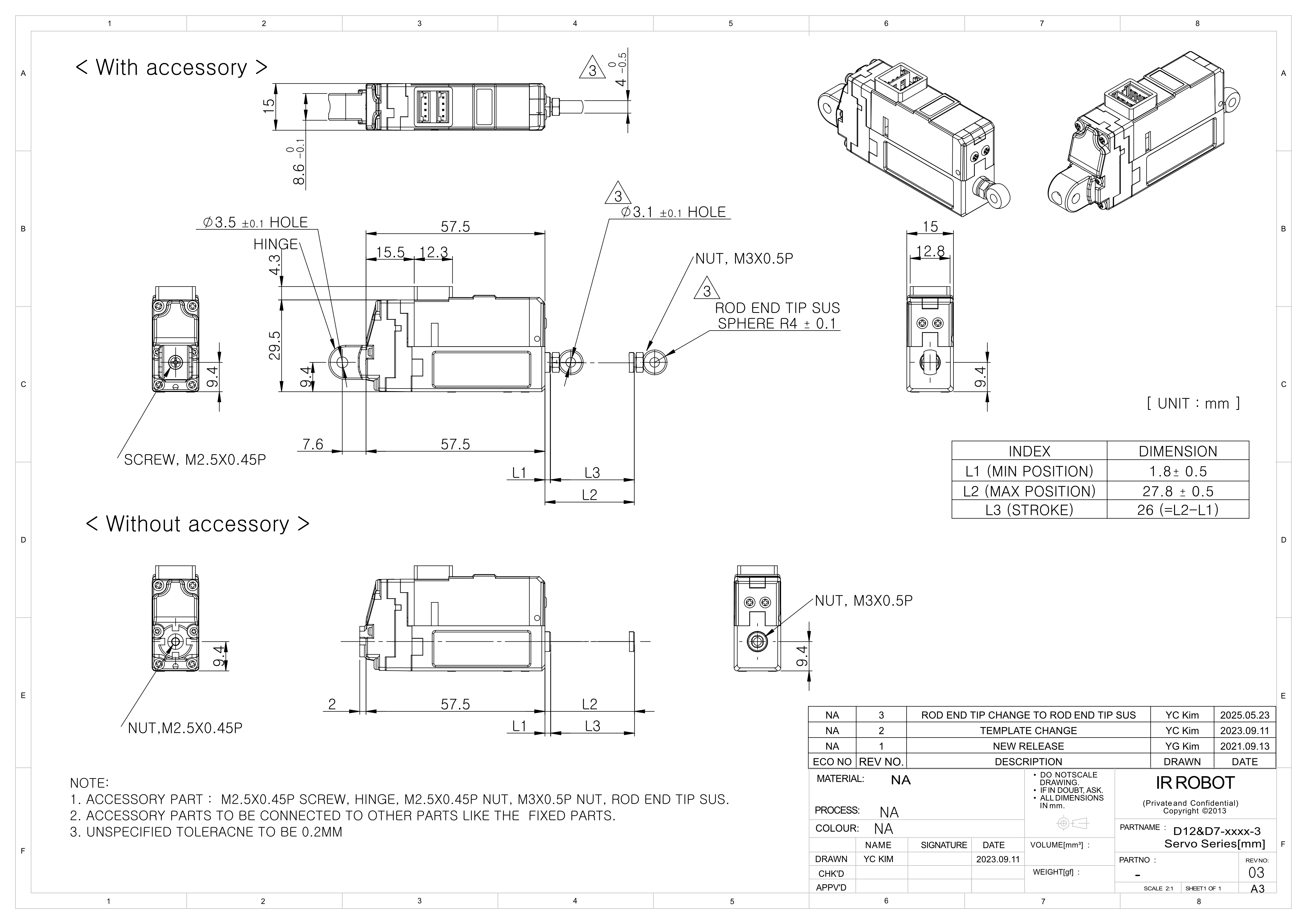

D12D7-xx-3 Unit : mm

d12d7-xx-3 Drawing
Download PDF STEP DXF

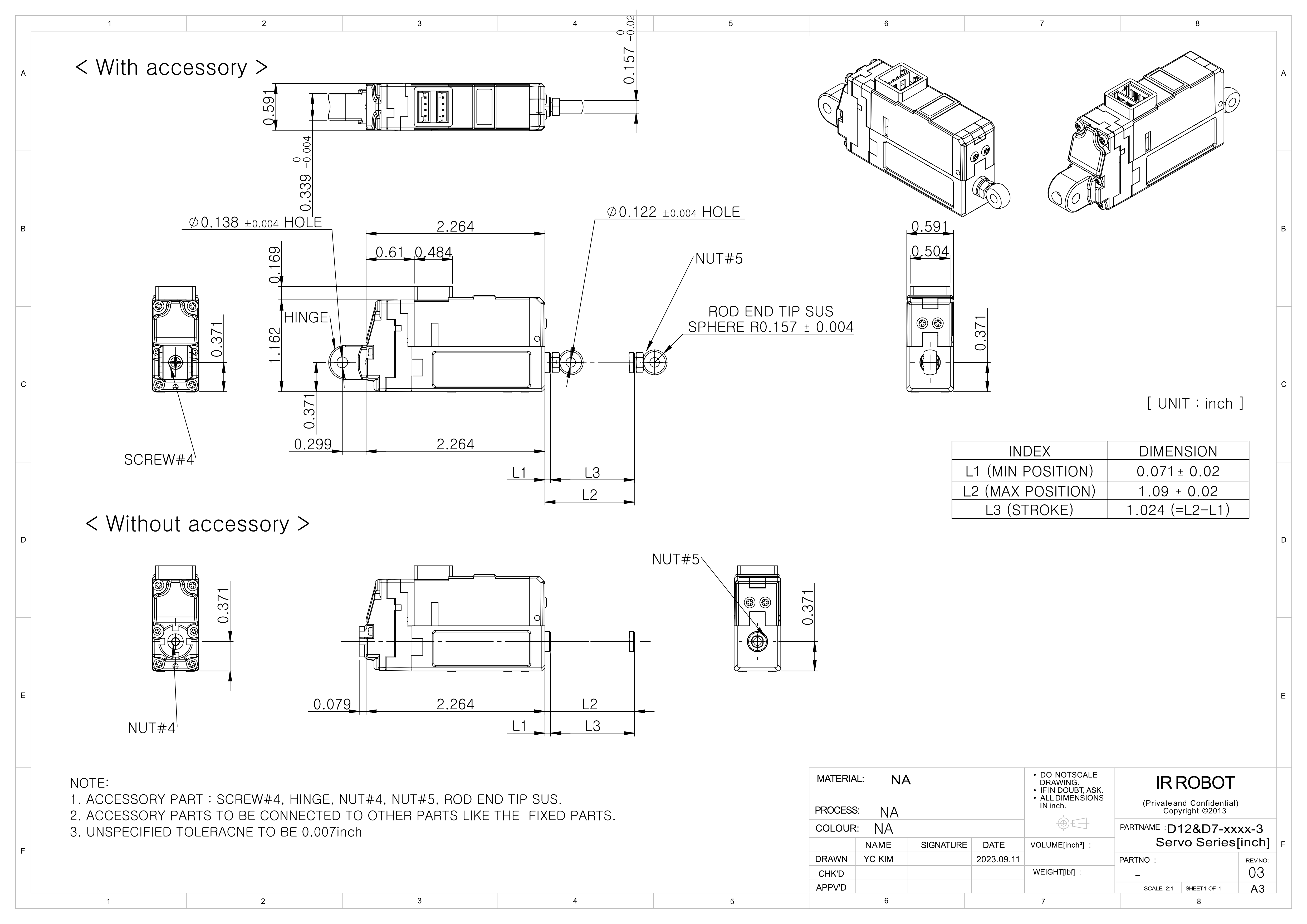

D12D7-xx-3 Unit : Inch

d12d7-xx-3 Drawing
Download PDF STEP DXF
