12L Limit Switch Drawings

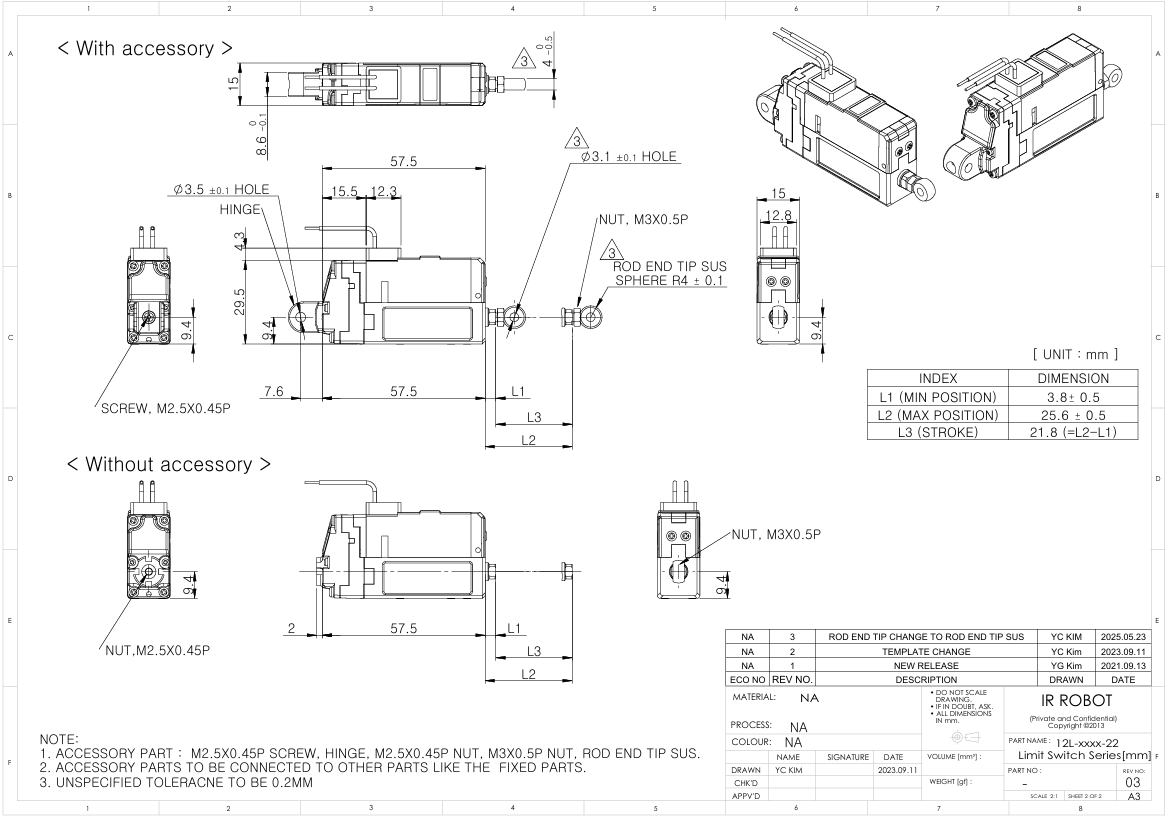

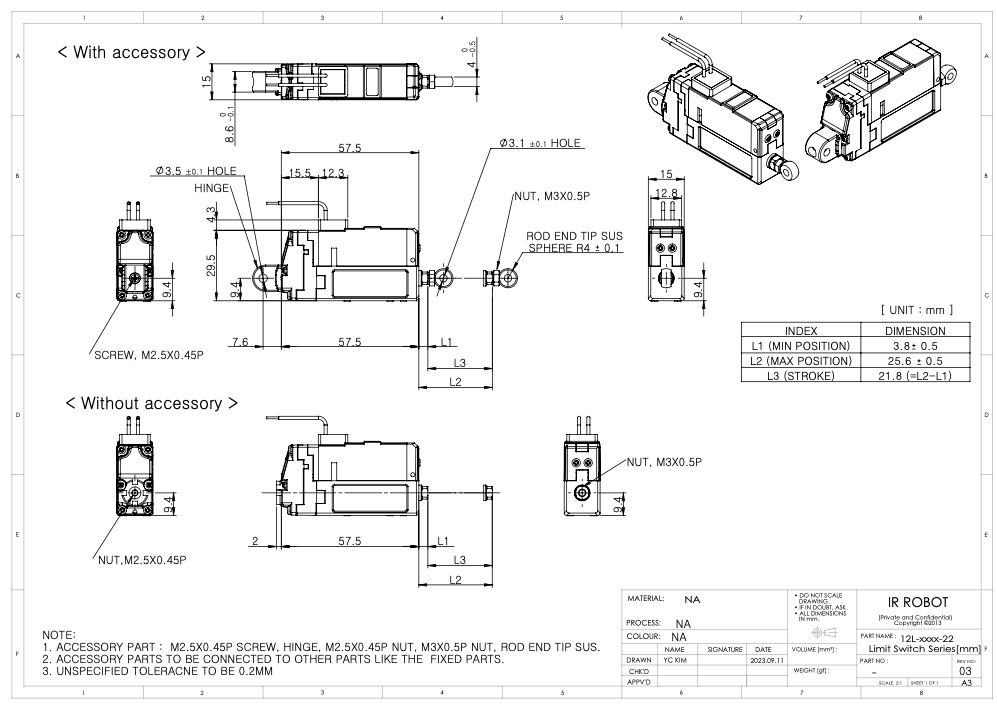

# 12L Limit Switch Uint : mm
Download
PDF
STEP
DXF

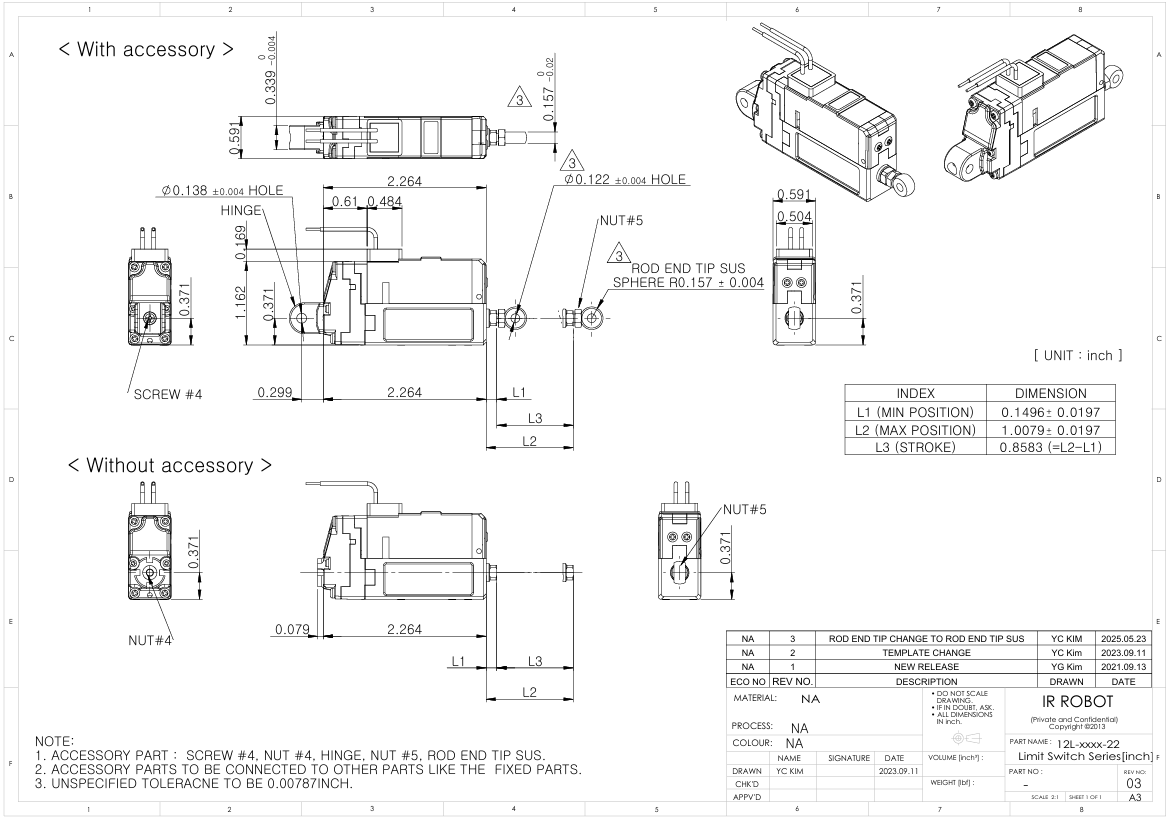

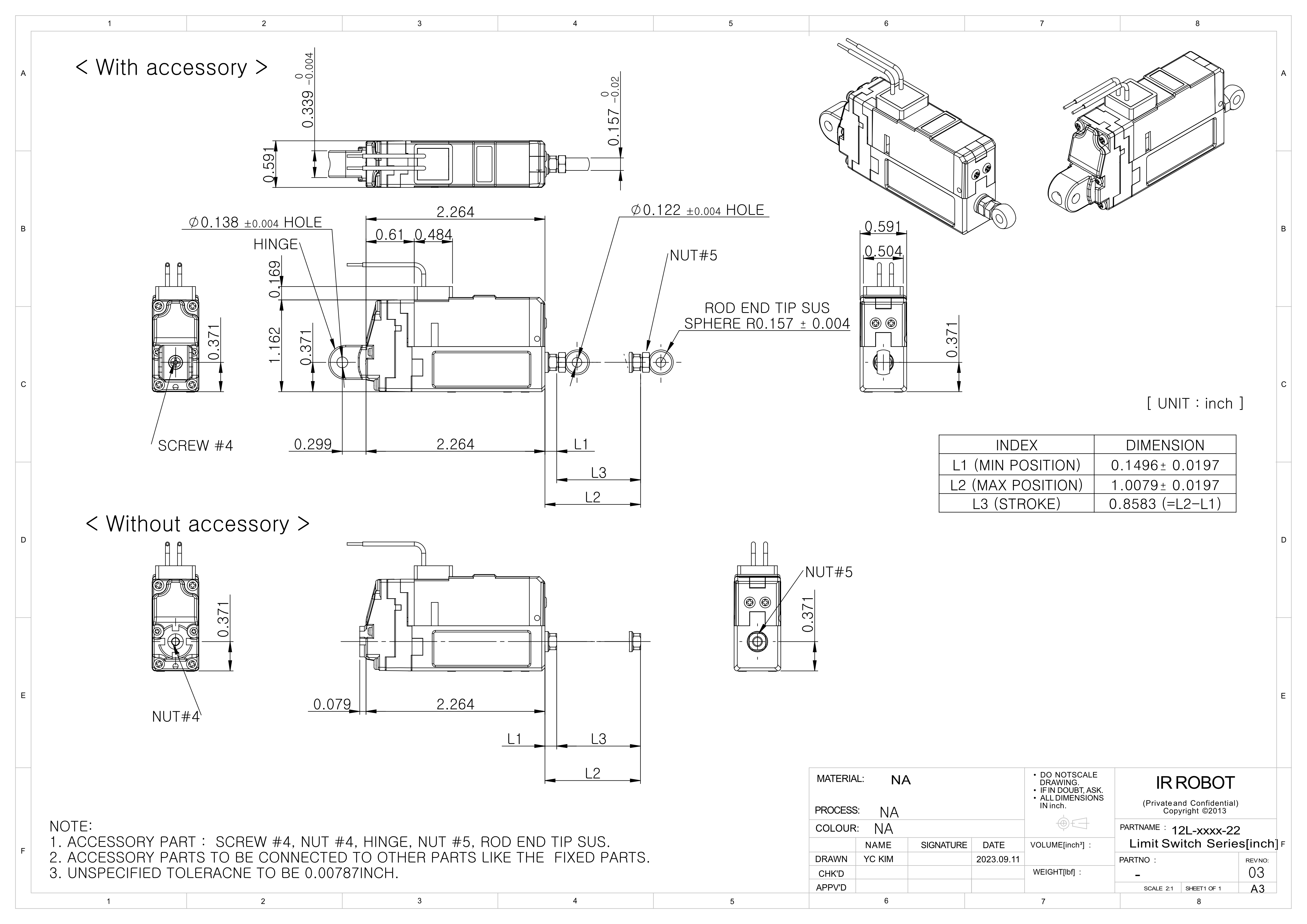

# 12L Limit Switch : Inch
Download
PDF
STEP
DXF
