Using Metal Barcket(IR-MB07)

The IR-MB07 is a metal bracket exclusively designed for the 17Lf series 37mm to 87mm strokes actuators. Mount the servo actuator without any directional restrictions of the actuator.

• For Horizontal Mounting and Vertical Mounting
• Not compatible with 17Lf 27mm stroke version

Caution

The cross-section of the metal bracket may be sharp when assembling.  Be sure to were protective gloves.

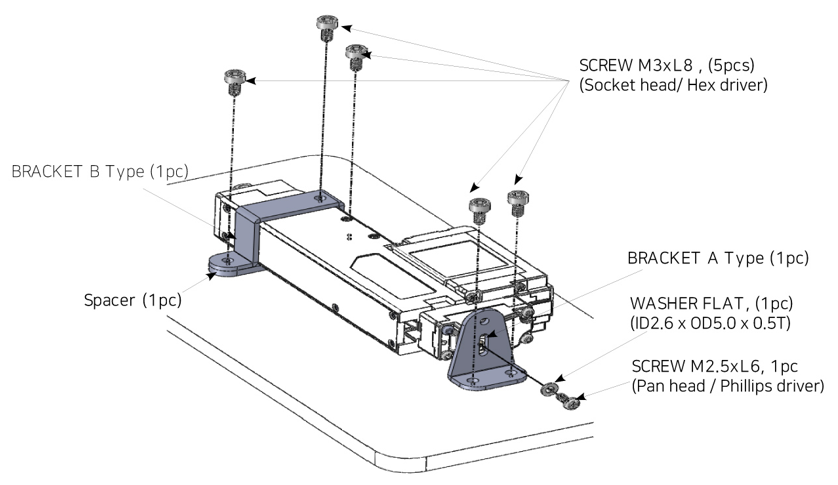

Horizontal Mounting

• Install the Bracket B Type by adding a spacer
• When installing the Bracket A Type, be sure to use the included washer.

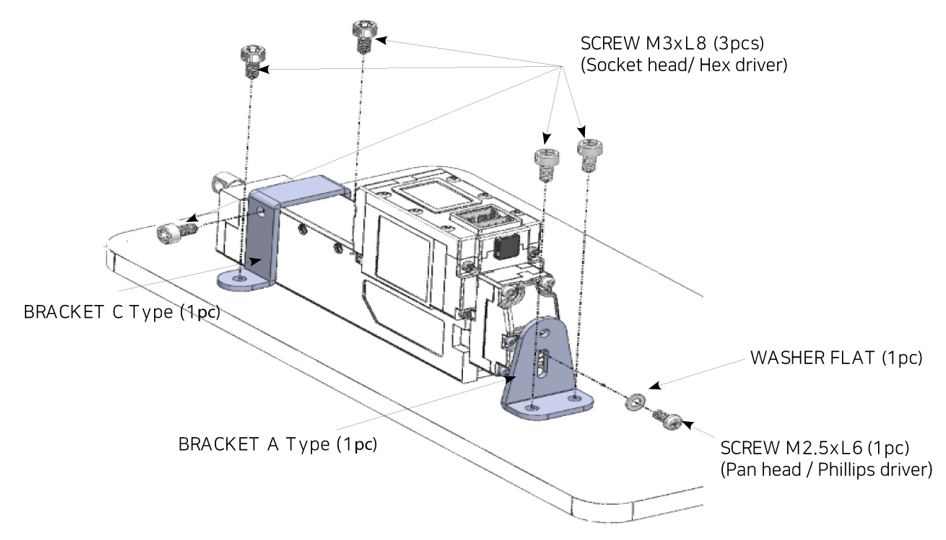

Vertical Mounting

• Install the Bracket C Type without a spacer.
• When installing the Bracket A Type, be sure to use the included washer.
