Using Metal Barcket(IR-MB06)

The IR-MB06 metal bracket dedicated to the 17Lf 27mm stroke series allows the servo actuator to be mounted vertically.

• For Vertical Mounting
• Not applicable to models other than 17Lf 27mm stroke series

Caution

The cutting-edges of the metal bracket (IR-MB06) may be sharp when assembling. Be sure to wear gloves to prevent injury.

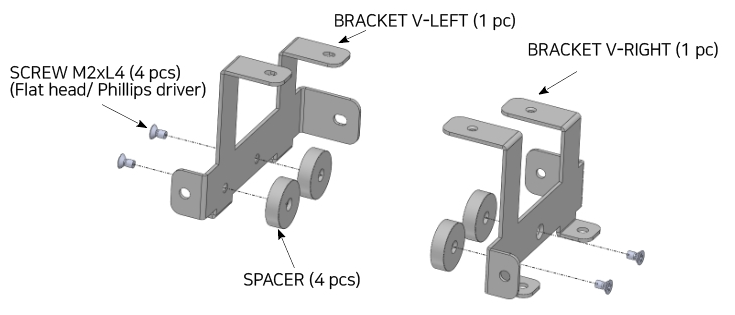

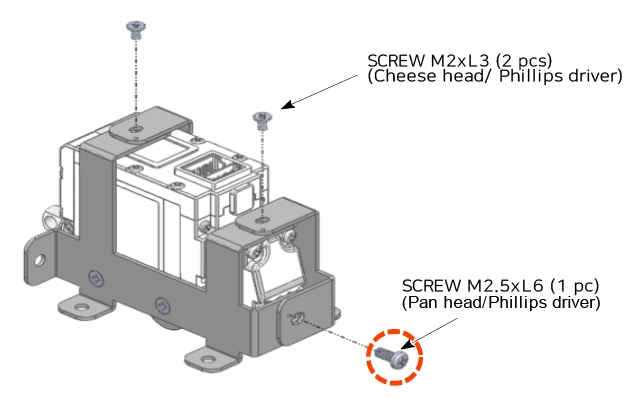

Step. 1 Assemble the spacers as shown below.Step. 2 Fasten the screws as shown below.  Pay attention to the screw specifications.

Caution

When fastening the Screw M2.6xL6 indicated by the  in the image above, be sure to use the screw screw included in the bracket. (Pay attention to the length of screw)  Otherwise, it may result in damage to the product.

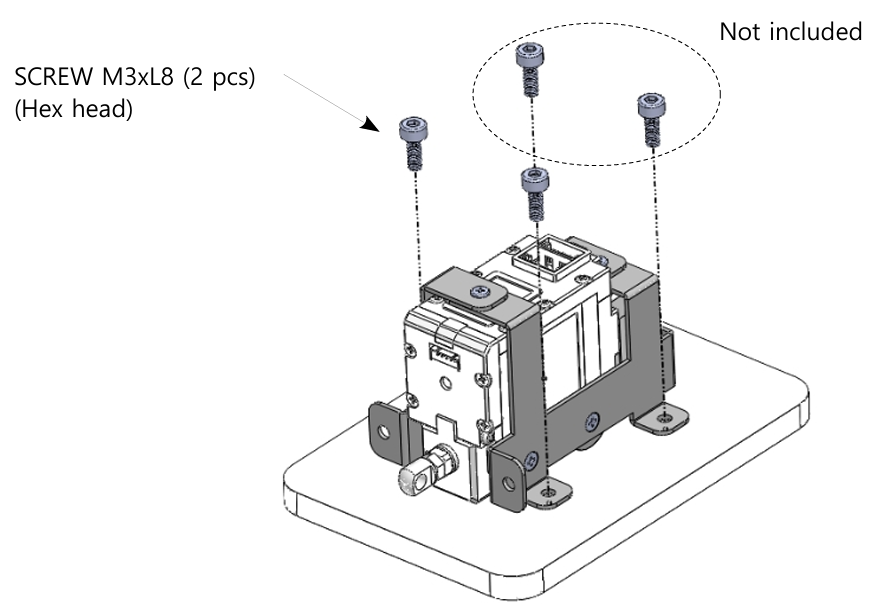

Step. 3 Fasten the Hex Head screws as shown below.  Only 2 Hex Head screws are included.

Step. 4  Alternatively, mount the bracket as shown below using the included plate.
