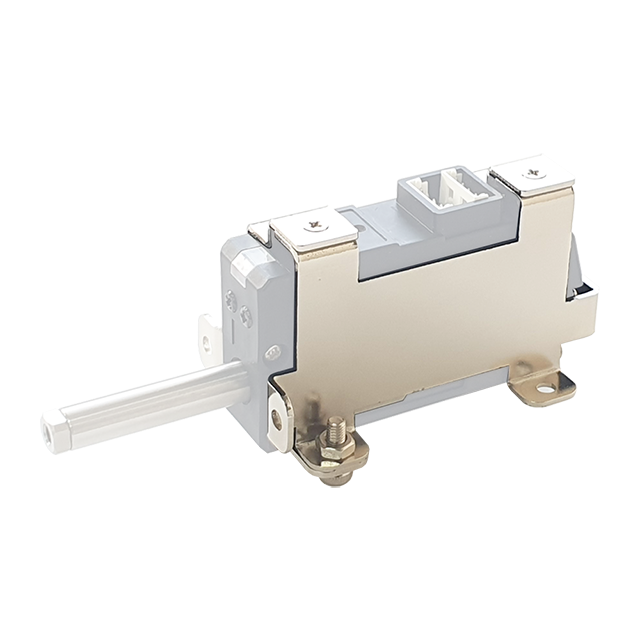

IR-MB02
- For 12Lf / L12 (27mm stroke), D12 / D7 (26mm stroke),
12L / 12D (22mm stroke) series
(Select IR-MB03 for longer stroke actuator of 40 mm or more) - For Lateral Mounting
- Not compatible with 17Lf series

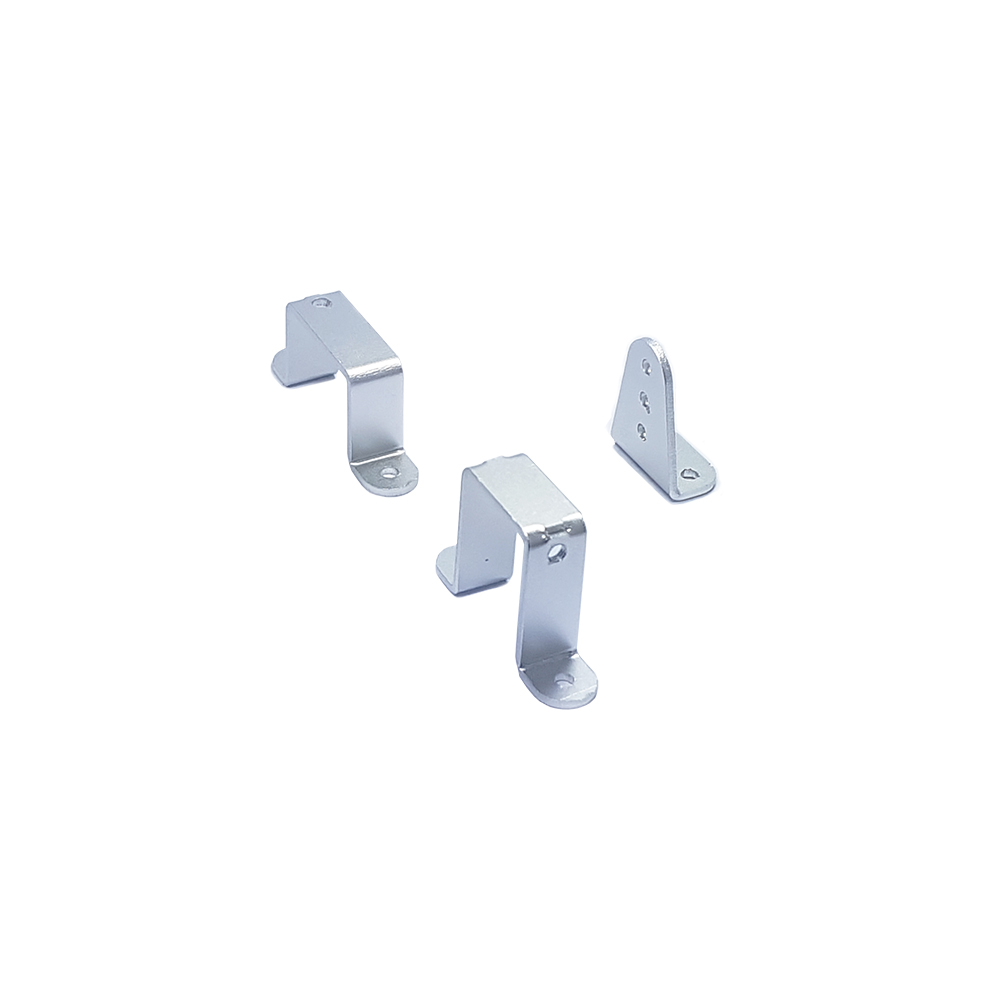

- Dedicated for 12Lf / L12 (40 ~ 96mm Stroke) Version
- Full Set for A, B, C Type Brackets
- Not compatible with 17Lf series

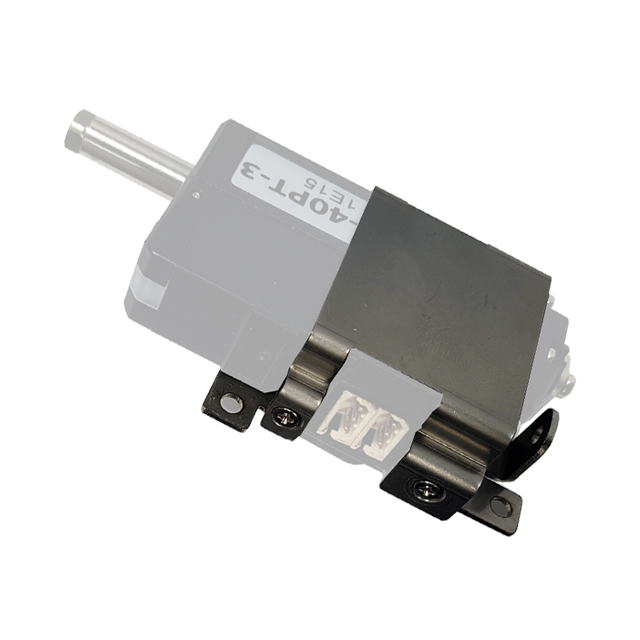

- For 12Lf / L12 (27mm stroke), D12 / D7 (26mm stroke),
12L / 12D (22mm stroke) series - For Vertical Mounting
- Not compatible with 17Lf series

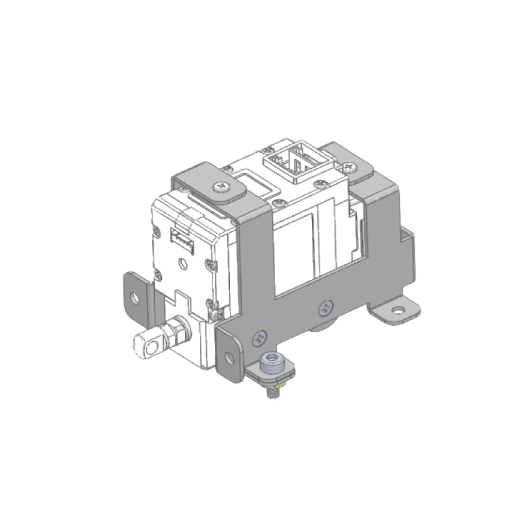

- Dedicated only for 17Lf (27mm stroke)
- For Lateral Mounting
- Not applicable to models other than 17Lf 27mm stroke series
- For assembly and installation instructions, see below.

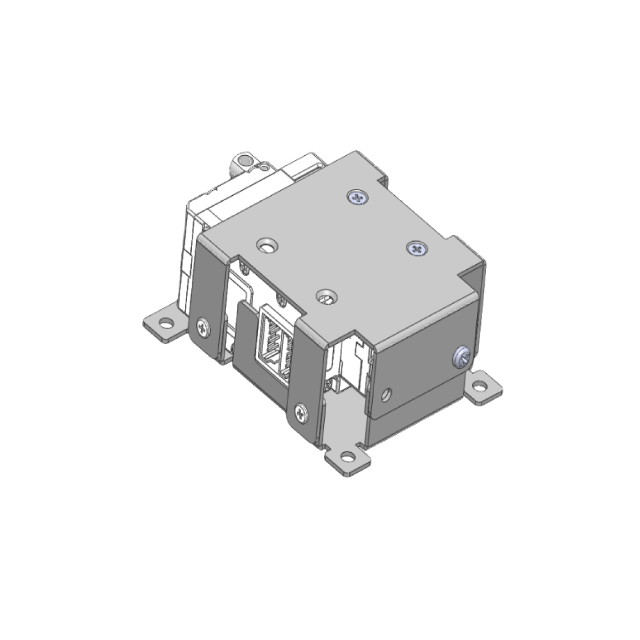

- Dedicated only for 17Lf (27mm stroke)
- For Vertical Mounting
- Not applicable to models other than 17Lf 27mm stroke series
- For assembly and installation instructions, see below.

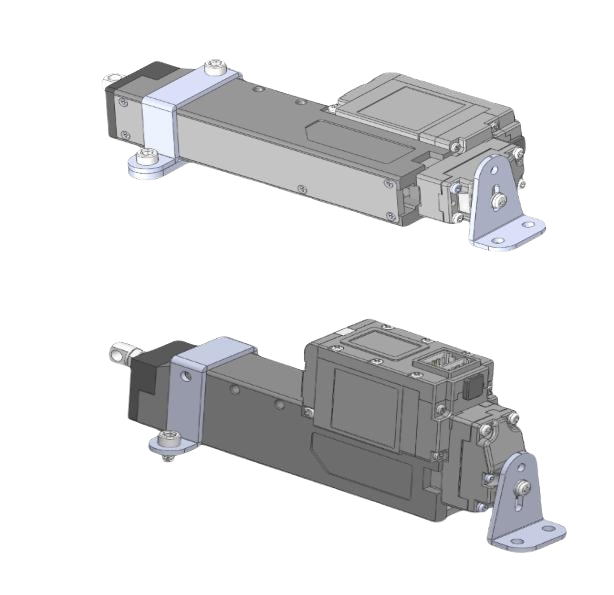

- Dedicated for 17Lf (37~87mm stroke) version
- Full Set for A, B, C Type Brackets
- For Horizontal Mounting and Vertical Mounting
- Not compatible with 17Lf 27mm stroke version
