12L Mini Limit Switch Drawings

# 12L Mini Limit Switch / Unit : mm

12l mini limit 2d drawing Download PDF STEP DXF

# 12L Mini Limit Switch / Unit : Inch

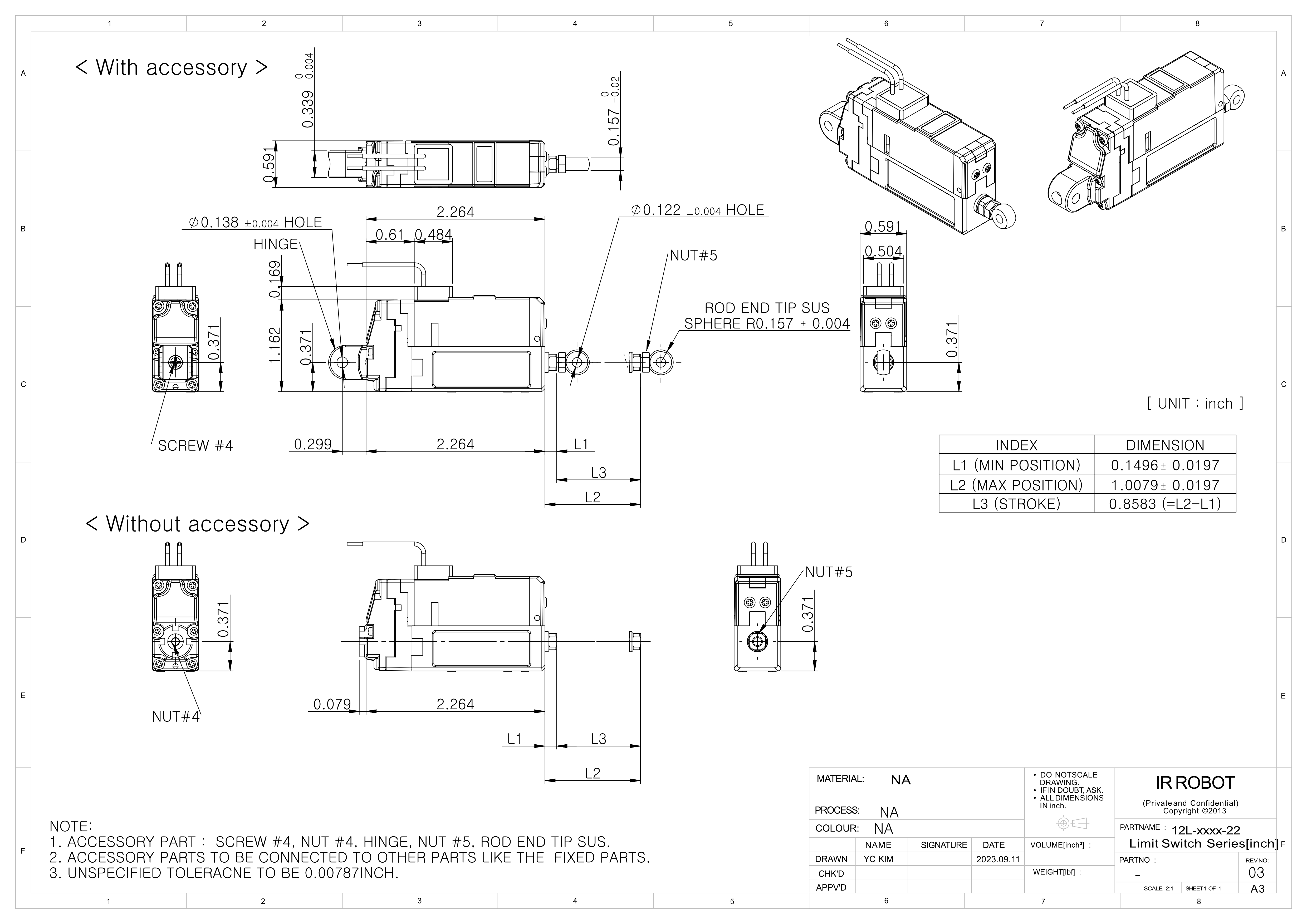

12L-xx-22 Download PDF STEP DXF
