12D Nano Limit Switch Drawings

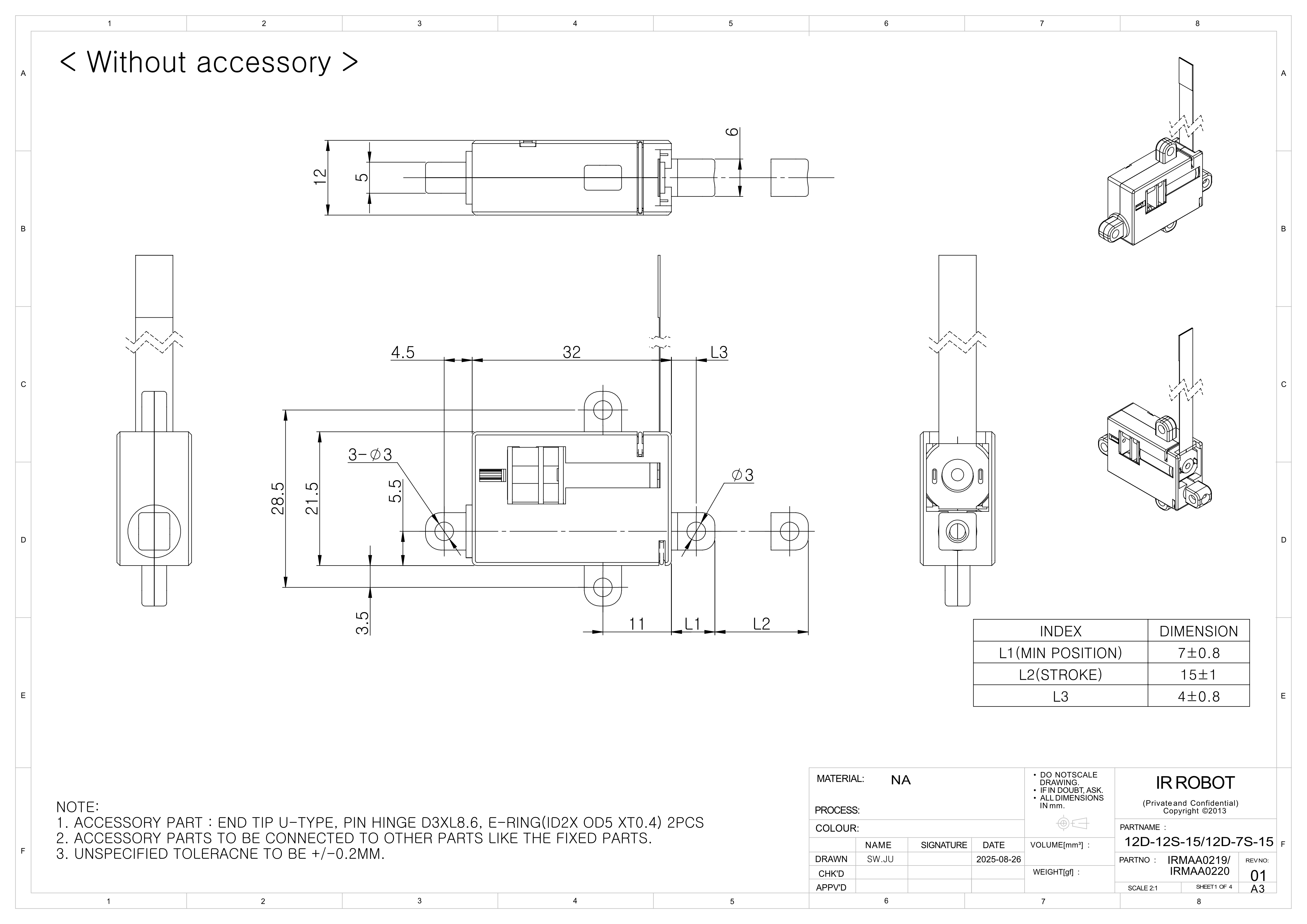

# 12D Nano Limit Switch / Unit : mm

12D-12S7S-15 Drawing Download PDF STEP DXF

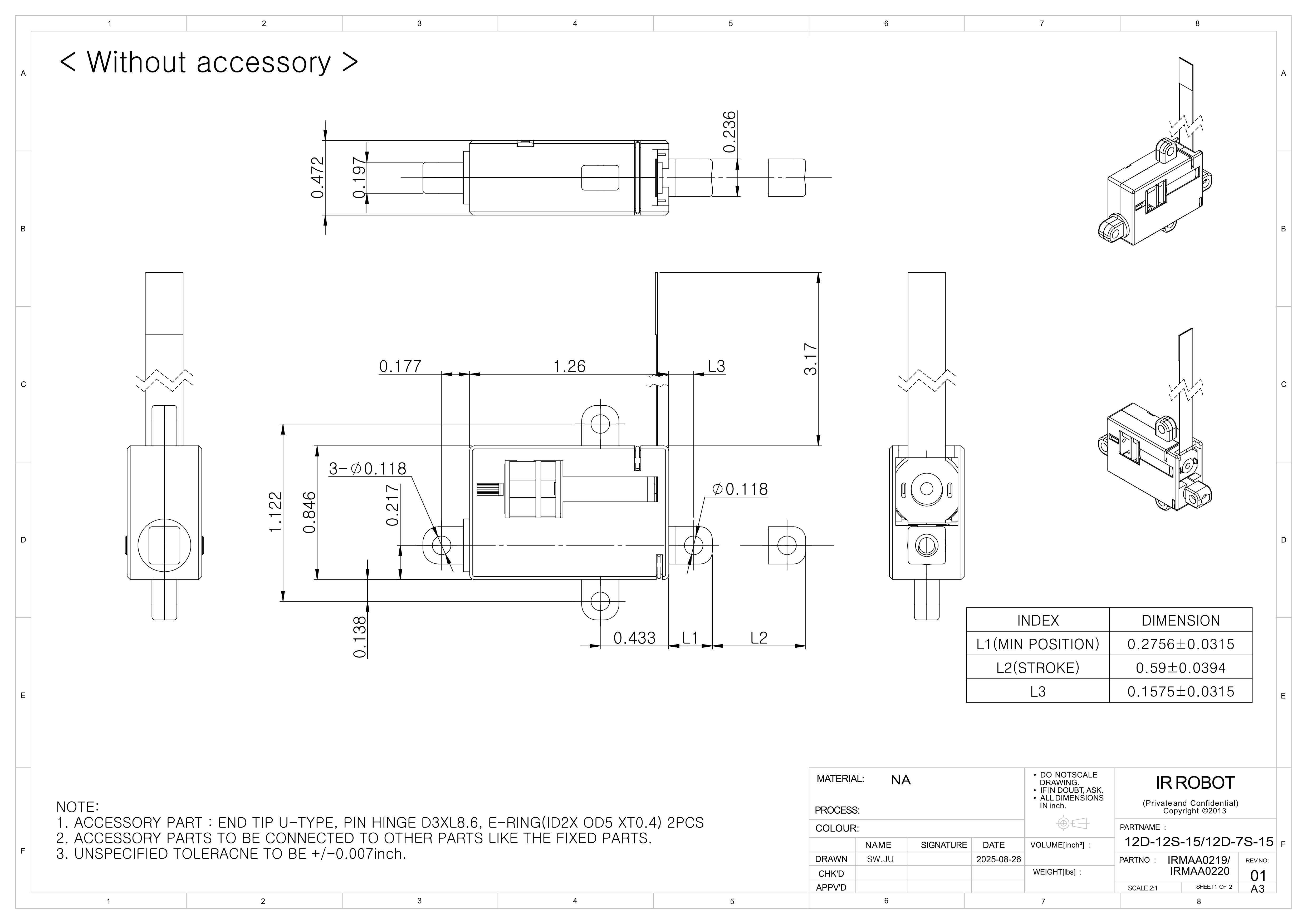

# 12D Nano Limit Switch / Unit : Inch

12D-12S7S-15 Download PDF STEP DXF
