12D Mini Limit Switch Drawings

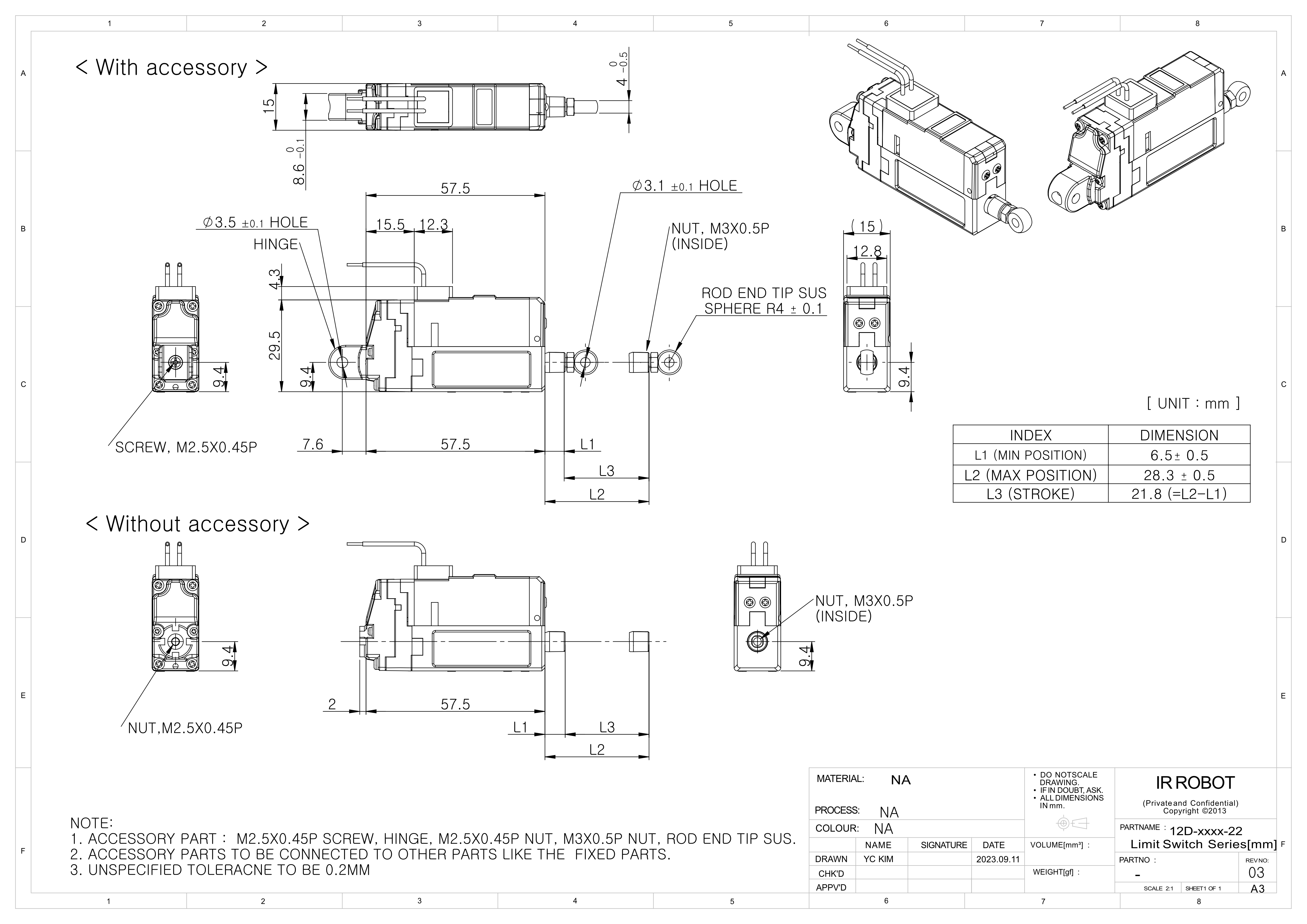

# 12D Mini Limit Switch / Unit : mm

12D-xx-22 Download PDF STEP dxf

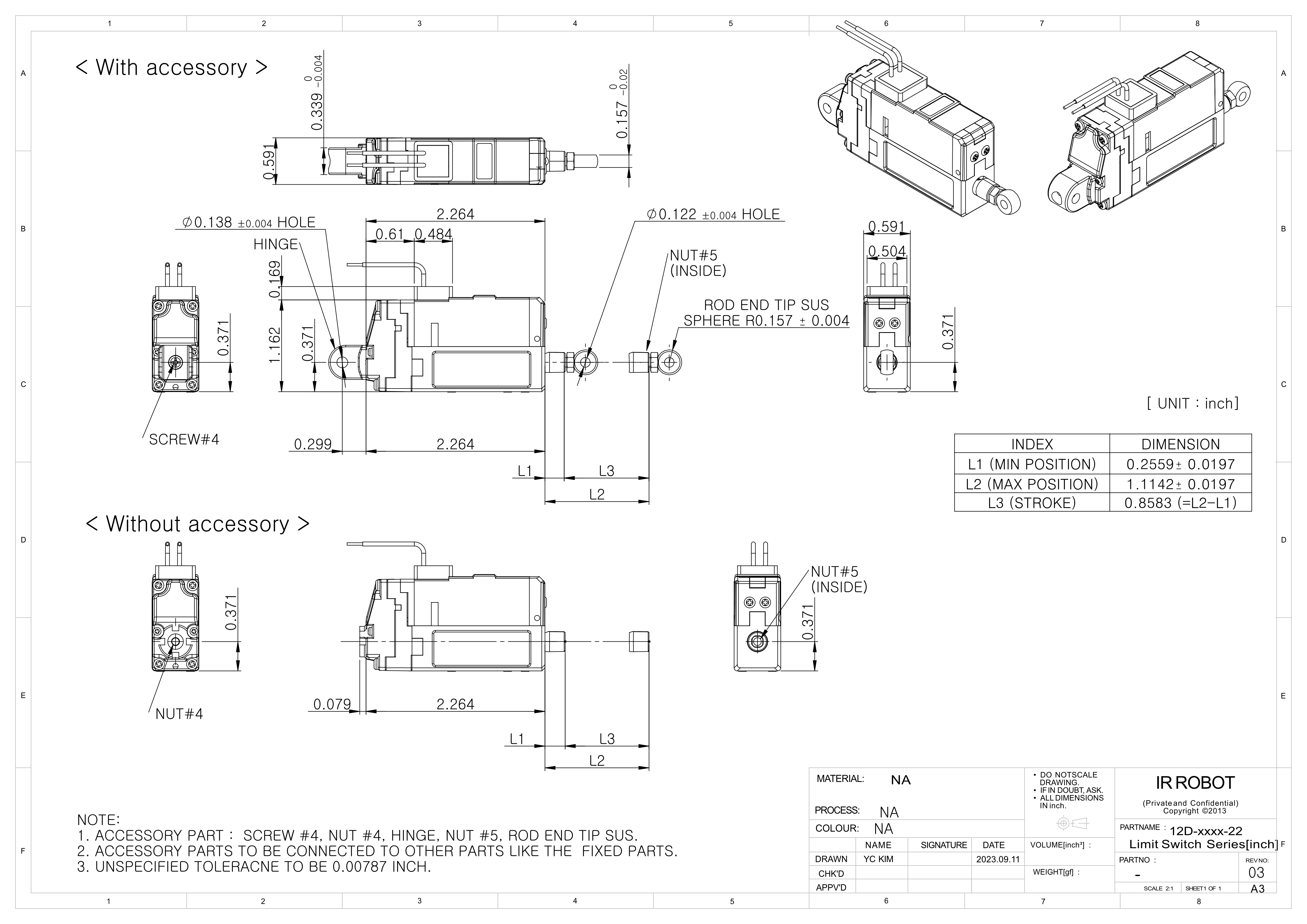

# 12D Mini Limit Switch / Unit : Inch

12L-xx-22 Download PDF STEP dxf
