IR-EB01 Drawing

[IR-EB01] Rod End Bearing 2D / 3D Drawings

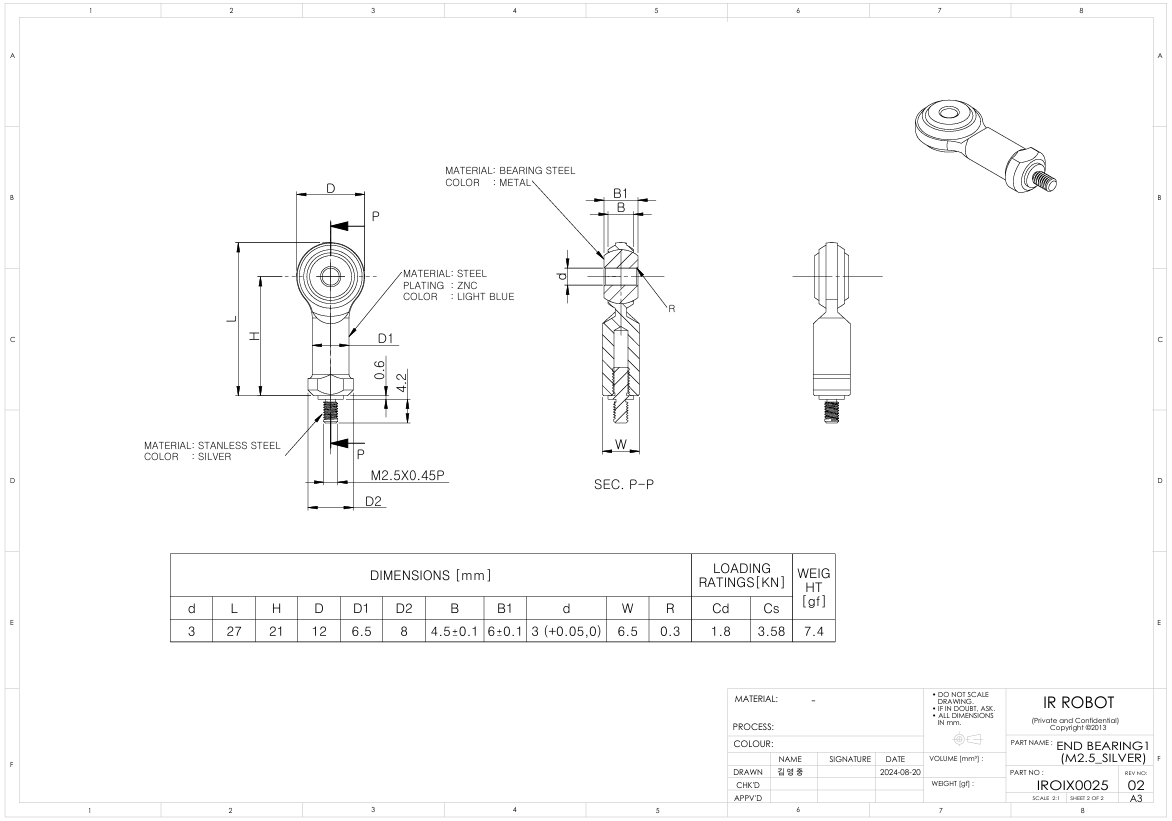

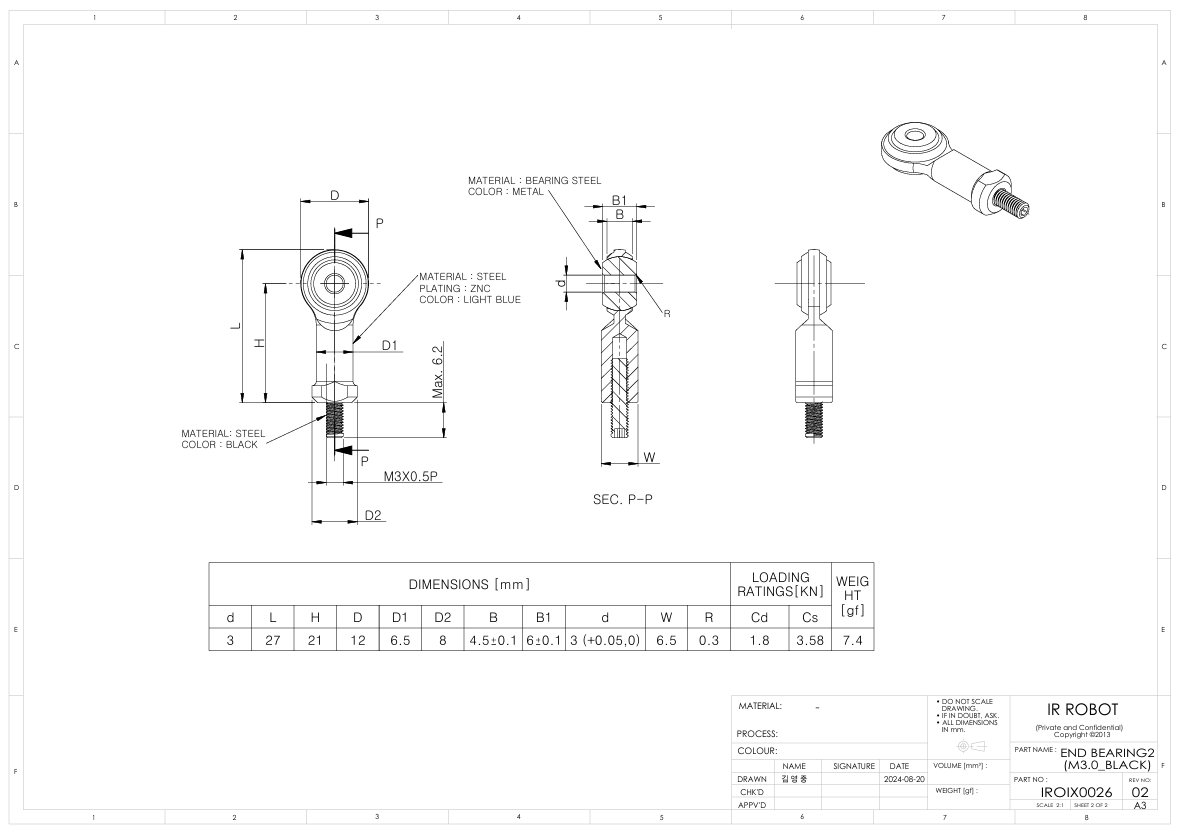

2D drawings(PDF /.dxf) and 3D drawings(STEP) for IR-EB01 which mounts migthyZAP at the both end using end bearings.  In case of 3D drawings, there are two different files for both M2.5 and M3.0. (1 set IR-EB01 = 1 x M2.5 end bearing + 1 x M3.0 end bearing)

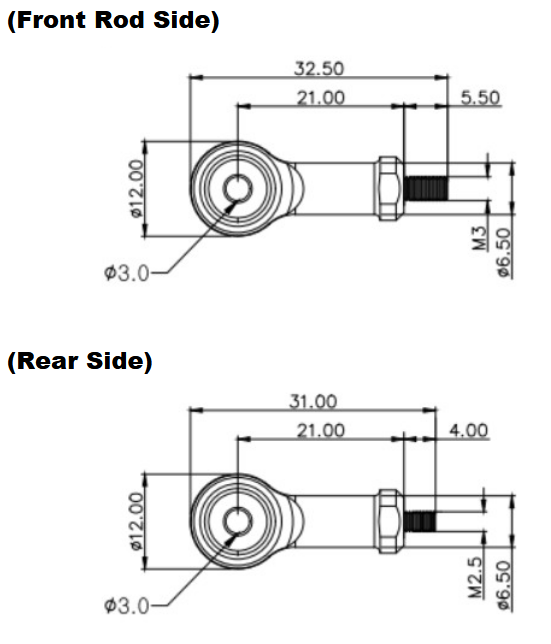

EB01 Rod End Bearing Unit : mm

m2.5

m3.0

Download PDF(m2.5) PDF(m3.0) STEP(M2.5) STEP(M3.0) dxf(m2.5) dxf(m3.0)

Rod end Nut Unit : mm

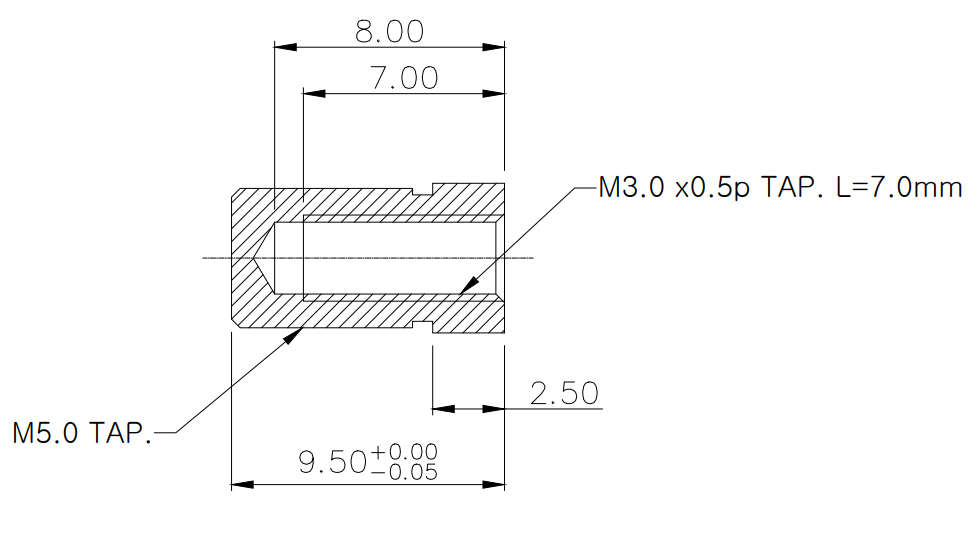

Here is the drawing for the Rod end nut (M3)which is attached on the end of Rod. Its specification is M3.0x5P, 7mm depth.
